AJAX CombiProtect Manual

Follow the steps in the manual and install the AJAX CombiProtect yourself

AJAX CombiProtect manual

The AJAX CombiProtect is a device combining a wireless motion detector with the viewing angle of 88.5° and distance up to 12 meters, as well as a glass break detector with the distance up to 9 meters. It can ignore animals and detects a person within the protected zone from the first step. It can operate for up to 5 years from a pre-installed battery and is used inside premises.


CombiProtect operates within the AJAX security system, by connecting the protected Jeweller protocol to the Hub. The communication range is up to 1,200 meters if there are no obstacles.


The detector is set up via a mobile application for iOS and Android-based smartphones.
he user is notified of all events through push notifications, SMS messages and calls (if activated).


The AJAX security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company.

Functional Elements

AJAX CombiProtect manual

1. LED indicator

2. Motion detector lens

3. Microphone hole
4. SmartBracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to tear off the detector from the surface)

5. Tamper button

6. Device switch

7. QR code

CombiProtect Operating Principle

CombiProtect combines two types of security devices – motion detector and glass break detector.


Thermal PIR sensor detects intrusion into a protected room by detecting moving objects with a temperature close to the temperature of the human body. At that, the detector can ignore domestic animals – you only need to set up the suitable sensitivity in the settings.


The electret microphone is responsible for glass break detection. The intelligent event registration system requires a sequence of sounds of a specific nature – first dull blow, then ringing sound of falling chips, which prevents accidental actuation.

CombiProtect detector will not react to breaking if a film has been applied the glass: shockproof, sunscreen, decorative or other. In order to detect the breaking of this type glass, we recommend using a DoorProtect Plus wireless opening detector with shock and tilt sensor.


After actuation, the detector set in the intrusion detection mode immediately transmits an alarm signal to the hub, activating the sirens connected to the hub and notifying the user and private security company.


To arm AJAX security system (including Ajax CombiProtect detector) you can use Ajax Security System app, SpaceControl key fob or KeyPad. If before setting the system in the intrusion detection mode the detector has detected motion, it will not set in the intrusion detection mode immediately, but during the next inquiry by the hub.

Connecting the Detector to the AJAX Security System

Connecting the Detector to the Hub

Before starting connection:


1. Following the hub instruction recommendations.
Install the AJAX application on your smartphone.
Create an account and add the hub to the application.
Create at least one room.

2. Go to the AJAX application.


3. Switch on the hub and check the internet connection (via Ethernet cable and/or GSM network).

4. Ensure that the hub is disarmed and does not start updates by checking its status in the mobile application.


How to connect the detector to the Hub:

1. Select the Add Device option in the AJAX application.

2. Name the device. Scan the QR Code (located on the body and packaging) and select the location room.

AJAX CombiProtect manual

3. Select Add — the countdown will begin.

4. Switch on the device.

AJAX CombiProtect manual

For the detection and interfacing to occur, the detector should be located within the coverage area of the wireless network of the hub (at a single protected object).


Request for connection to the hub is transmitted for a short time at the time of switching on the device.


If the connection to the AJAX hub failed, switch off the detector for 5 seconds and repeat the attempt.


The detector connected to the hub will appear in the list of devices of the hub in the application. Update of the detector statuses in the list depends on the device inquiry time set in the hub settings, with the default value – 36 seconds.

Values in the AJAX App

  AJAX CombiProtect manual  AJAX CombiProtect manual

Temperature: Temperature of the Detector. Measured on the processor and changes gradually

Signal Strength: Signal strength between the hub and the detector

Battery Charge: Battery level of the detector, displayed in increments of 25%

Lid: The tamper mode of the detector, which reacts to the detachment of or damage to the body

Delay when entering, sec: Delay time when entering

Delay when leaving, sec: Delay time when exiting

Connection: Connection status between the hub and the detector

Motion Detector Sensitivity: Sensitivity level of the motion sensor

Motion Detector Always Active: If active, the motion detector is always in the armed mode
Glass Protection Sensitivity: Sensitivity level of the glass detector
Glass Protection Always Active: If active the glass detector is always in the armed mode

Firmware: Detector firmware version

Device ID: Device identifier

Settings

  AJAX CombiProtect manual  AJAX CombiProtect manual

First field: Detector name, can be edited

Room: Selecting the virtual room to which the device is assigned

Sensitivity

Choosing the sensitivity level of the motion sensor, high - normal - low

Always active: If active, the detector always registers motion
Glass Protection Enabled: If active, glass breaking detector will be active
Glass Protection Sensitivity: Choosing the sensitivity level of the glass detector, high - normal - low
Glass Protection Always Active: If active, the detector always registers glass breaking

Delay when entering, sec: Selecting delay time when entering

Delay when leaving, sec: Selecting delay time on exit

Delays in night mode: Delay turned on when using night mode

Arm in night mode: If active, the detector will switch to armed mode when using night mode

Alert with a siren if motion detected: If active, HomeSiren and StreetSiren are activated when the motion detected
Alert with a siren if glass break detected: If active, HomeSiren and StreetSiren are activated when the glass break detected

Signal Strength Test: Switches the detector to the signal strength test mode

Detection Zone Test: Switches the detector to the detection area test

Signal Fade Test: Switches the detector to the signal fade test mode (available in detectors with firmware version 3.50 and later)

User Guide: Opens the detector User Guide

Unpair device: Disconnects the detector from the hub and deletes its settings

Detector operation indication

Turning on the detector: Lights up green for about one second

Detector connection to the Hub: Lights up continuously for a few seconds

Alarm / tamper activation: Lights up green for about one second (note: Alarm is sent once in 5 seconds)

Battery needs replacing: During the alarm, it slowly lights up green and slowly goes out
Replacement of the detector battery is described in the Battery Replacement paragraph

Detector Testing

The AJAX security system allows conducting tests for checking the functionality of connected devices.


The tests do not start straight away but within a period of 36 seconds when using the standard settings. The test time start depends on the settings of the detector scanning period (the paragraph on “Jeweller” settings in hub settings).


Signal Strength Test

Detection Zone Test
- Glass break Detection Zone Test

-Motion Detection Zone Test

Attenuation test

Installing the detector

Selection of the Detector Location

The area of the controlled territory and, consequently, the efficiency of the security system depends on the location of the detector.


Location of the CombiProtect detector determines its remoteness from the hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted floors, large-size objects located within the room.


If the signal level is one division, we cannot guarantee stable operation of the security system. Take possible measures to improve the quality of the signal! As a minimum, move the device – even 20 cm shift can significantly improve the quality of reception.


If, after moving, the device still has a low or unstable signal strength, use a radio signal range extender ReX.


It is advisable that the direction of the detector lens sight is perpendicular to the probable way of breaking into the room. The detector microphone should be positioned at the angle of no more than 90 degrees relative to the window.


Make sure that any furniture, domestic plants, vases, decorative or glass structures do not block the field of view of the detector.

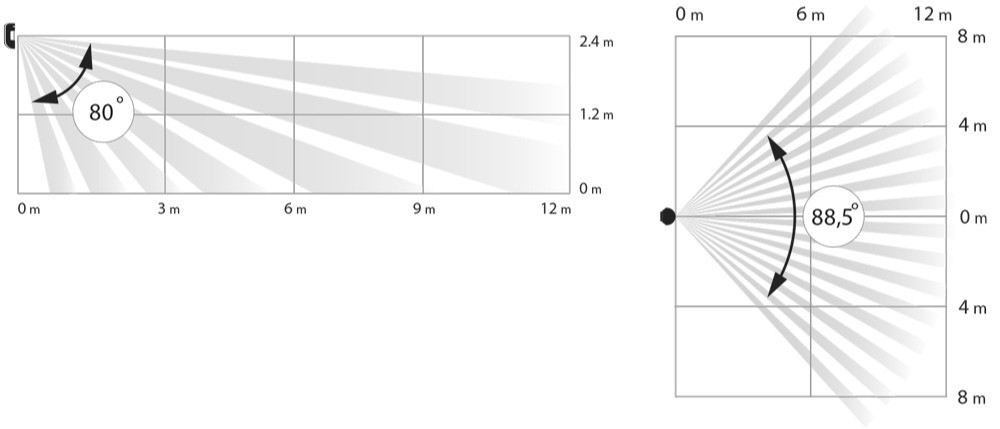

We recommend installing the detector at the height of 2.4 meters.

AJAX CombiProtect manual
If the detector is not installed at the recommended height, this will reduce the area of the motion detection zone and impair the operation of the function of ignoring animals.

AJAX CombiProtect manual



Installation of the Detector

Before installing the detector, make sure that you have selected the optimal location and it is in compliance with the guidelines contained in this manual.

AJAX CombiProtect manual

AJAX CombiProtect manual

1. Attach the SmartBracket panel to the surface using bundled screws, using at least two fixing points (one of them – above the tamper). After selecting other attachment hardware, make sure that they do not damage or deform the panel.
The double-sided adhesive tape may only be used for temporary attachment of the detector. The tape will run dry in the course of time, which may result in the falling of the detector and actuation of the security system. Furthermore, the device may fail from a hit (as a result of an impact).

2. Put the detector on the attachment panel. As soon as the detector is fixed in SmartBracket, it will blink with an LED – this will be a signal that the tamper on the detector is closed.


If the light indicator of the detector is not actuated after installation in SmartBracket, check the status of the tamper in the AJAX Security System application and then the fixing tightness of the panel.


If the detector is torn off from the surface or removed from the attachment panel, you will receive the notification.


Do not install the detector:

  1. outside the premises (outdoors)
  2. in the direction of the window, when the detector lens is exposed to direct sunlight
  3. opposite any object with the rapidly changing temperature (e.g., electrical and gas heaters)
  4. opposite any moving objects with the temperature close to that of the human body (oscillating curtains above the radiator)
  5. opposite any reflective surfaces (mirrors)
  6. at any places with fast air circulation (air fans, open windows or doors)
  7. nearby any metal objects or mirrors causing attenuation and screening of the signal
  8. within any premises with the temperature and humidity beyond the range of permissible limits
  9. closer than 1 m from the hub.

Detector maintenance

Check the operational capability of the CombiProtect detector on a regular basis.


Clean the detector body from dust, spider web and other contaminations as they appear. Use soft dry napkin suitable for equipment maintenance.


Do not use for cleaning the detector any substances containing alcohol, acetone, gasoline and other active solvents. Wipe the lens very carefully and gently – any scratches on the plastic may cause reduction of the detector sensitivity.


The battery installed in the detector ensures up to 5 years of autonomous operation (with the inquiry frequency by the hub of 3 minutes). If the detector battery is discharged, the security system will send respective notices and the LED will smoothly light up and go out, if the detector detects any motion or if the tamper is actuated.

How to change batteries in the CombiProtect

To change the battery:

1. Remove the detector from the SmartBracket attachment panel.
AJAX CombiProtect manual



2. Switch off the device.

AJAX CombiProtect manual

3. Loosen three screws and remove the front back of the detector.

AJAX CombiProtect manual

4. Change the battery for a new one of type CR123A, observing the polarity.
Do not install already used or damaged batteries.

5. Reattach the back panel of the detector and tighten the 3 screws.

6. Turn on the detector and check the battery status in the mobile application.
The battery status do not update instantly, but within a ping period (by default, every 36 seconds).

Complete Set

- CombiProtect

- SmartBracket mounting panel

- Battery CR123A (pre-installed)

- Installation kit

- Quick Start Guide

Tech Specs

  • Sensitive element: PIR sensor (motion) Electric microphone (glass break)
  • Motion detection distance: Up to 12 m
  • Motion detector viewing angles (H/V): 88.5° / 80°
  • Animal ignoring option: Weight up to 20 kg, height up to 50 cm
  • Glass break detection distance: Up to 9 m
  • Microphone coverage angle: 180°
  • Tamper protection: Yes
  • Frequency band: 868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale
  • Compatibility: Operates with Hub, Hub Plus, Hub 2, ReX, ocBridge Plus, uartBridge
  • Maximum RF output power: Up to 20 mW
  • Radio signal modulation: GFSK
  • Radio signal range: Up to 1,200 m (any obstacles absent)
  • Power supply: 1 battery CR123A, 3 V
  • Вattery life: Up to 5 years
  • Operating temperature range: From -10°С to +40°С
  • Operating humidity: Up to 75%
  • Overall dimensions: 110 х 65 x 50 mm
  • Weight: 92 g
