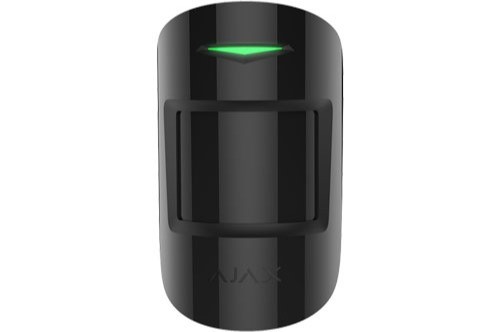

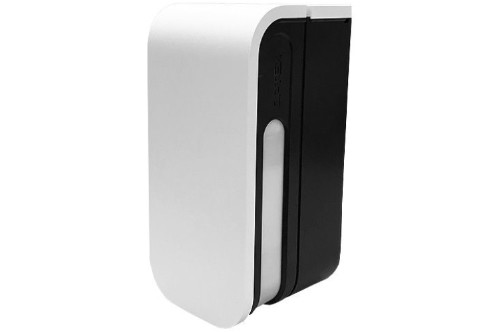

MotionProtect Plus << >> Optex Curtain

Easily switch between pages

MotionProtect Plus << MotionProtect Curtain >> Optex Curtain

AJAX MotionProtect Curtain is available in black and white.

Buy in Webshop

Webshop

AJAX MotionProtect Curtain is in stock

AJAX MotionProtect Curtain

The MotionProtect Curtain is without doubt one of the finest detectors in the range because it allows you to protect a very specific area. The viewing angle of this detector is only 6 degrees wide. So, as it were, an imaginary line falls out of this detector, so you can choose very precisely which areas you want to protect. Only when someone walks through this imaginary line will it generate an alarm.

The MotionProtect Curtain can detect movement over an area of 2.4 meters by up to 15 meters, and up to 8 meters in the position where it does not react to animals. In addition, for each detection distance, the sensitivity can also be set in 3 positions.

Below we give some examples of how you can position this curtain detector.

Installation MotionProtect Curtain

The MotionProtect Curtain is a curtain detector which, like all detectors, is easy to install. An installation on a wall, for example, can be done in no time, but there are also other mounting options.

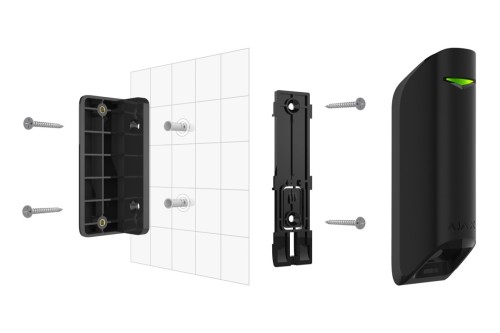

AJAX MotionProtect Curtain Corner mounting

Corner mounting bracket

A corner mounting bracket is included in the scope of delivery. With this bracket you can mount the curtain detector at an angle of 90 degrees. This is an ideal way to secure windows and doors on the outside of your home or business. This means that detection takes place before the person stands at your window or door or company.

MotionProtect Curtain mounting positions

AJAX MotionDetector Curtain on the ceiling

Mounting on the ceiling

The detector can also be mounted on the ceiling. People can walk around in the room below, without causing an alarm. In this position, the animal-friendly mode does not have to be activated, and the maximum sensitivity can be selected for a range of 11 metres per detector. As soon as someone tries to enter through the window, the detector will immediately send out an alarm signal. Like any other detector, the detector can also be set to a "permanent active" position. This means that the location is protected 24/7, and any movement will be detected immediately.

Living room

If you mount a curtain detector inside like this, you can walk freely in the living room and the rest of the house, and only an alarm will be generated if a person comes in through the door or the window.

Garage

The detector can also be mounted in the parking garage. This means that the garage door does not always have to be closed when you are at home, because as soon as someone walks into the garage, the detector will immediately send out an alarm signal.

The MotionProtect Curtain in the AJAX App

With the AJAX App you can set everything concerning this MotionProtect Curtain detector. For your own imaging you can assign the detector to a certain room, for example "garden".

It is also possible to create groups with this alarm system, so you can secure a part of your house or only your garden. Multiple detectors can be connected to a room, but that does not mean that if you choose to create groups, all detectors from one room must also be active in a group. Groups and rooms are separate, a group can also consist of a few detectors from different rooms.

You can use the App to set the sensitivity of the sensors, and whether you want to receive a warning if the image of the sensors is blocked for whatever reason. (anti-mask)
AJAX MotionDetector Curtain application

You can also choose to program one or more detectors to "always active". There will always be a message when someone passes the detector. Think of a locker room where normally no one should be present.

Of course you can also set a delay time when leaving the building / garden as well as when entering. You can also choose whether the detector should set off a siren, or whether you only want to receive a notification via the App on your smartphone.

It is also possible to choose whether the detector should also be active in the special night modes. This way you can for example choose to only switch on the garden and living room detectors during the night, and not the detectors of the bedrooms, but if you then all leave the building a full switch on at the normal position can take place.

To determine the position of the detector you can do a signal test to determine if the signal up to the Hub is powerful enough for the Hub to register everything. Thanks to the Jeweller technology, this should not be a problem for most and even largest homes. Through the detection zone test you can easily walk around in the area to be protected. The detector's lamp is on constantly during the detection test. As soon as a movement is detected, it will go out for a while to let you know that you have been seen.
