AJAX MotionProtect / MotionProtect Plus Manual

Follow the steps in the manual and install the AJAX MotionProtect yourself

AJAX MotionProtect manual

The AJAX MotionProtect is a wireless motion detector designed for use inside premises. It can operate up to 7 years from a pre-installed battery and tracks the area with the radius of 12 meters. It is able to ignore animals and the detector will recognize a man from the first step.


The AJAX MotionProtect Plus has also a thermal detector uses radio frequency scanning. It is filtering interferences from thermal radiation and the detector can operate up to 5 years from a pre-installed battery.


The MotionProtect operates within the AJAX security system by connecting the protected Jeweller protocol to the Hub. The communication range is up to 1700 meters (MotionProtect Plus up to 1200) if there are no obstacles. In addition, the detector can be used as part of third-party security central units due to the uartBridge or ocBridge Plus integration module.


The detector is set up by a mobile application for iOS and Android-based smartphones. The user is notified of all events through push notifications, SMS messages and calls (if activated).


The AJAX security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company.

Functional Elements

AJAX MotionProtect manual

1. LED indicator

2. Motion detector lens

3. SmartBracket attachment panel
(perforated part is required for actuating the tamper in case of any attempt to tear off the detector from the surface)

4. Tamper button

5. Device switch

6. QR code

MotionProtect Operating Principle

The thermal PIR sensor of the MotionProtect detects intrusion into a protected room by detecting moving objects whose temperature is close to the temperature of the human body. The detector can ignore domestic animals, you only need to set up the suitable sensitivity in the settings.


When the MotionProtect Plus detects motion it will additionally carry out radio frequency scanning of the room. Preventing false actuation from thermal interferences: air flows from an airconditioning unit, curtains, louvre shutters, fireplaces etc.


After actuation the detector immediately transmits an alarm signal to the hub, activating the sirens connected to the hub and notifying the user.

Connecting the Detector to the AJAX Security System

Connecting the Detector to the Hub

Before starting connection:


1. Following the hub instruction recommendations.
Install the AJAX application on your smartphone.
Create an account and add the hub to the application.
Create at least one room.

2. Go to the AJAX application.

3. Switch on the hub and check the internet connection (via Ethernet cable and/or GSM network).

4. Ensure that the hub is disarmed and does not start updates by checking its status in the mobile application.


How to connect the detector to the Hub:

1. Select the Add Device option in the AJAX application.

2. Name the device. Scan the QR Code (located on the body and packaging) and select the location room.

QR code AJAX MotionProtect

3. Select Add — the countdown will begin.

4. Switch on the device.

AJAX MotionProtect manual

For the detection and interfacing to occur, the detector should be located within the coverage area of the wireless network of the Hub (at a single protected object).


Request for connection to the hub is transmitted for a short time at the time of switching on the device.


If the connection to the AJAX Hub failed, switch off the detector for 5 seconds and repeat the attempt.


The detector connected to the Hub will appear in the list of devices of the Hub in the application. Update of the detector statuses in the list depends on the device inquiry time set in the Hub settings, with the default value – 36 seconds.

Values in the AJAX App

AJAX MotionProtect manual  AJAX MotionProtect manual

Temperature: Temperature of the Detector. Measured on the processor and changes gradually

Signal Strength: Signal strength between the hub and the detector

Battery Charge: Battery level of the detector, displayed in increments of 25%

Lid: The tamper mode of the detector, which reacts to the detachment of or damage to the body

Delay when entering, sec: Delay time when entering

Delay when leaving, sec: Delay time when exiting

Connection: Connection status between the hub and the detector

Sensitivity: Sensitivity level of the motion sensor

Always Active: If active, the motion detector is always in the armed mode

Firmware: Detector firmware version

Device ID: Device identifier

Settings

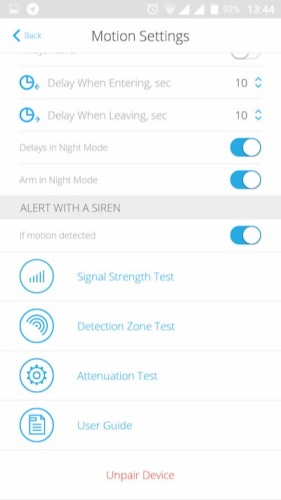

AJAX MotionProtect settings  AJAX MotionProtect settings

First field: Detector name, can be edited

Room: Selecting the virtual room to which the device is assigned


Sensitivity

Choosing the sensitivity level of the motion sensor.

For MotionProtect:

High — for premises with a minimum amount of obstacles, motion is detected as quickly as possible

Medium — for premises with potential obstacles (windows, air conditioner, heating element, etc)

Low — ignore pets weighing up to 20 kg and up to 50 cm tall

For MotionProtect Plus:

High — the detector disregards cats (under 25 cm)

Medium — disregards small dogs (under 35 cm)

Low — disregards animals under 50 cm.


Always active: If active, the detector always registers motion

Delay when entering, sec: Selecting delay time when entering

Delay when leaving, sec: Selecting delay time on exit

Delays in night mode: Delay turned on when using night mode

Arm in night mode: If active, the detector will switch to armed mode when using night mode

Alert with a siren if motion detected: If active, HomeSiren and StreetSiren are activated when the motion detected

Signal Strength Test: Switches the detector to the signal strength test mode

Detection Zone Test: Switches the detector to the detection area test

Attenuation test: Switches the detector to the signal fade test mode (available in detectors with firmware version 3.50 and later)

User Guide: Opens the detector User Guide

Unpair device: Disconnects the detector from the hub and deletes its settings


Before using the detector as a security system element, set up the suitable sensitivity level of the sensor.

The “Always Active” mode is worth switching on if the detector is located in a room requiring 24-hour control. Regardless of whether the system is set in the armed mode, you will receive notices of any detected motion.


If any motion is detected, the detector activates the LED for 1 second and transmits an alarm signal to the hub and then to the user and central monitoring station (if it is connected).

Detector operation indication

Turning on the detector: Lights up green for about one second

Detector connection to the Hub: Lights up continuously for a few seconds

Alarm / tamper activation: Lights up green for about one second (note: Alarm is sent once in 5 seconds)

Battery needs replacing: During the alarm, it slowly lights up green and slowly goes out
Replacement of the detector battery is described in the Battery Replacement paragraph

Detector Testing

The AJAX security system allows conducting tests for checking the functionality of connected devices.


The tests do not start straight away but within a period of 36 seconds when using the standard settings. The test time start depends on the settings of the detector scanning period (the paragraph on “Jeweller” settings in hub settings).


Signal Strength Test

Detection Zone Test

Attenuation test

Device installation

Selection of the Detector Location

The area of the controlled territory and, consequently, the efficiency of the security system depends on the location of the detector.


Location of the AJAX MotionProtect detector determines its remoteness from the Hub and presence of any obstacles between the devices hindering the radio signal transmission: walls, inserted floors, large-size objects located within the room.


AJAX MotionProtect detector location

Check the signal level at the installation location

If the signal level is one division, we cannot guarantee stable operation of the security system. Take possible measures to improve the quality of the signal! As a minimum, move the device – even 20 cm shift can significantly improve the quality of reception.

If, after moving, the device still has a low or unstable signal strength, use a radio signal range extender ReX.

It is advisable that the direction of the detector lens sight is perpendicular to the probable way of intrusion into the room.


Make sure that any furniture, domestic plants, vases, decorative or glass structures do not block the field of view of the detector.

We recommend installing the detector at the height of 2,4 meters.

If the detector is not installed at the recommended height, this will reduce the area of the motion detection zone and impair the operation of the function of ignoring animals.

AJAX MotionProtect Manual


Installation of the Detector

Before installing the detector, make sure that you have selected the optimal location and it is in compliance with the guidelines contained in this manual.

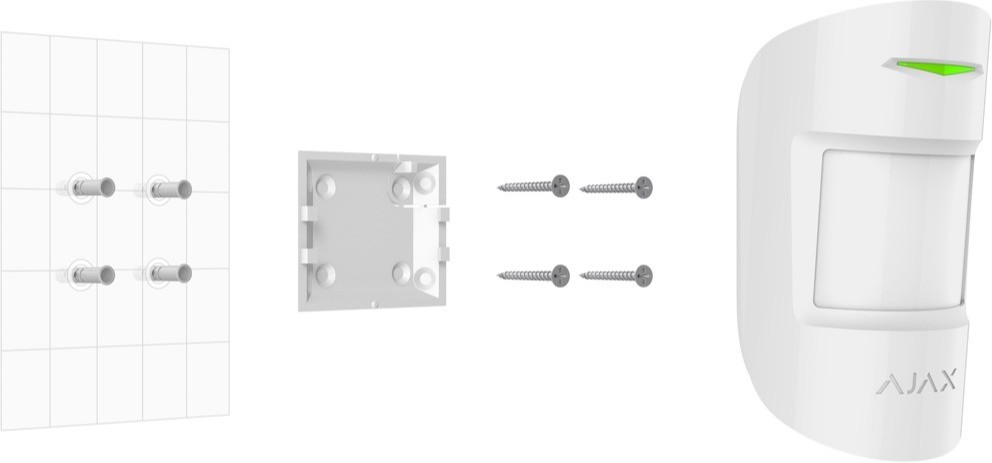

AJAX MotionProtect installation manual

The AJAX MotionProtect detector  (MotionProtect Plus) should be attached to a vertical surface or in the corner.

AJAX MotionProtect user manual

1. Attach the SmartBracket panel to the surface using bundled screws, using at least two fixing points (one of them – above the tamper). After selecting other attachment hardware, make sure that they do not damage or deform the panel.
The double-sided adhesive tape may only be used for temporary attachment of the detector. The tape will run dry in the course of time, which may result in the falling of the detector and actuation of the security system. Furthermore, the device may fail from a hit.

2. Put the detector on the attachment panel. As soon as the detector is fixed in SmartBracket, it will blink with an LED – this will be a signal that the tamper on the detector is closed.


If the LED indicator of the detector is not actuated after installation in SmartBracket, check the status of the tamper in the AJAX Security System application and then the fixing tightness of the panel.


If the detector is torn off from the surface or removed from the attachment panel, you will receive the notification.


Do not install the detector:

- Outside the premises (outdoors)

- In the direction of the window, when the detector lens is exposed to direct sunlight (you can install MotionProtect Plus)

- Opposite any object with the rapidly changing temperature (e.g., electrical and gas heaters) (you can install MotionProtect Plus)

- Opposite any moving objects with the temperature close to that of the human body (oscillating curtains above the radiator) (you can install MotionProtect Plus)

- At any places with fast air circulation (air fans, open windows or doors) (you can install MotionProtect Plus)

- Nearby any metal objects or mirrors causing attenuation and screening of the signal

- Within any premises with the temperature and humidity beyond the range of permissible limits

closer than 1 m from the hub.

Detector maintenance

Check the operational capability of the AJAX MotionProtect detector on a regular basis.


Clean the detector body from dust, spider web and other contaminants as they appear. Use soft dry napkin suitable for equipment maintenance.


Do not use for cleaning the detector any substances containing alcohol, acetone, gasoline and other active solvents. Wipe the lens very carefully and gently – any scratches on the plastic may cause reduction of the detector sensitivity.


The pre-installed battery ensures up to 7 years (MotionProtect Plus up to 5 years) of autonomous operation (with the inquiry frequency by the hub of 3 minutes). If the detector battery is discharged, the security system will send respective notices and the LED will smoothly lights up and goes out, if the detector detects any motion or if the tamper is actuated.

How to change the batteries in MotionProtect

To replace the battery:

1. Remove the detector from the SmartBracket mounting panel.

2. Turn off the device.

3. Loosen three screws and remove the front of the detector.

To replace the battery:

1. Remove the detector from the SmartBracket mounting panel.

2. Turn off the device.

3. Loosen three screws and remove the front of the detector.

4. Replace the battery with a new CR123A type, observing the polarity.


  1. Do not insert used or damaged batteries.

5. Attach the rear panel of the detector and tighten the 3 screws.

6. Turn on the detector and check the battery status in the mobile application.


The battery status is not updated immediately, but within a ping period (standard every 36 seconds).
Battery replacement AJAX MotionProtect how to

4. Replace the battery with a new one, type CR123A, observing the polarity.


  1. Do not insert used or damaged batteries.

5. Attach the rear panel of the detector and tighten the 3 screws.

6. Turn on the detector and check the battery status in the mobile application.


The battery status is not updated immediately, but within a ping period (standard every 36 seconds).

Buy AJAX CR123A battery?

Take a look at our information page about all available brands of CR123A batteries to use in MotionProtect or order the best CR123A battery directly in our webshop.

(webshop opens in a new tab)

Complete Set

- MotionProtect (MotionProtect Plus)

- SmartBracket mounting panel

- Battery CR123A (pre-installed)

- Installation kit

- Quick Start Guide

Tech Specs

  • Sensitive element: PIR sensor (Motion Protect Plus: PIR and microwave sensor)
  • Motion detection distance: Up to 12 m
  • Motion detector viewing angles (H/V): 88,5° / 80°
  • Animal ignoring option: Yes, height up to 50 cm, weight up to 20 kg
  • Tamper protection: Yes
  • Frequency band: 868.0 – 868.6 MHz or 868.7 – 869.2 MHz, (depending on the region)
  • Compatibility: Operates with Hub, Hub Plus, Hub 2, ReX, ocBridge Plus, uartBridge
  • Maximum RF output power: Up to 20 mW
  • Modulation of the radio signal: GFSK
  • Radio signal range: Up to 1700 m (any obstacles absent) (Motion Protect Plus up to 1200 m)
  • Power supply: 1 battery CR123A, 3 V
  • Battery life: Up to 7 years (Motion Protect Plus up to 5 years)
  • Operating temperature range: From -10°С to +40°С
  • Operating humidity: Up to 75%
  • Overall dimensions: 110 х 65 x 50 mm
  • Weight: 86 g (Motion Protect Plus – 96 g)
