AJAX ReX Manual

Manual / Webshop / Installation

View all products in our webshop to buy online.

If you want the best security system in Spain installed by us, choose installation.

Follow the steps in the manual and install the AJAX ReX yourself

The AJAX ReX is a range extender of communication signals that expands the radio communication range of AJAX devices fitted with a hub up to 2-fold. It has a built-in tamper resistance and is equipped with a battery that provides up to 35 hours of operation without external power.

The extender is compatible only with the AJAX hubs.
Only one ReX radio signal range extender can be connected to the Hub.

The device is configured via the mobile application for iOS and Android smartphones. Push-notifications, SMS messages and calls (if enabled) notify ReX user about all events.

Functional elements AJAX ReX

AJAX ReX manual
1. Logo with light indicator

2. SmartBracket attachment panel
(perforated section is necessary to trigger the tamper during an attempt to lift the fixed ReX from the surface)

3. Power connector

4. QR-code

5. Tamper button

6. Power button

Principle of operation

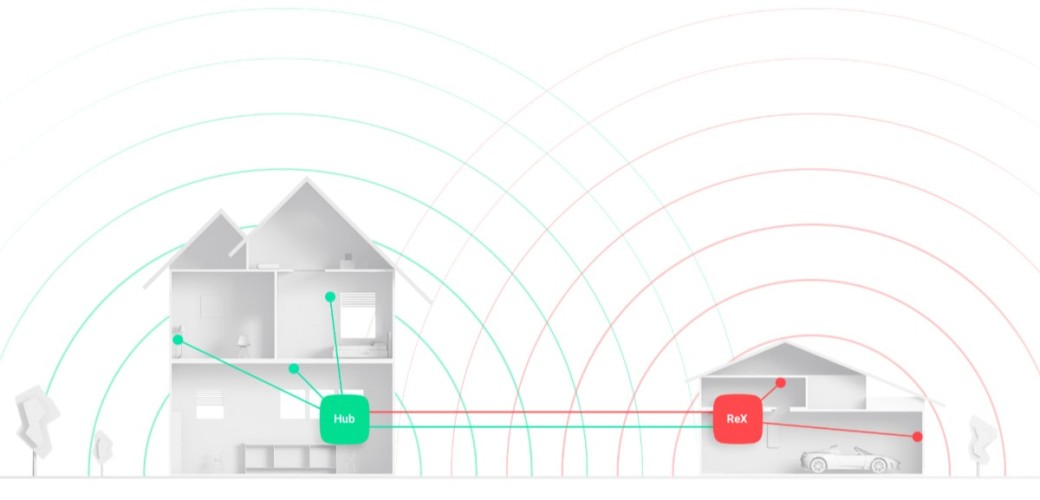

ReX expands the radio communication range of the security system allowing installation of AJAX devices at a greater distance away from the hub.
AJAX ReX manual

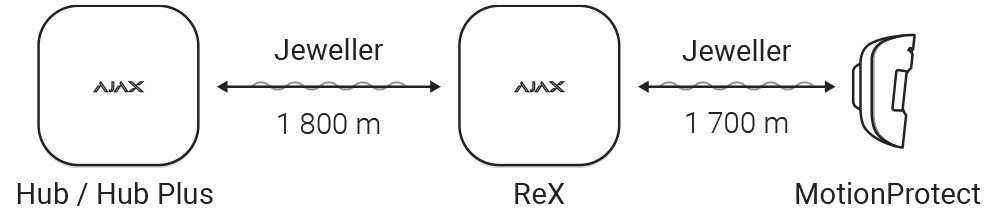

The communication range between ReX and the device is limited by the radio signal range of the device (indicated in the device specifications on the website and in the User Manual).

ReX receives hub signals and transmits them to the devices connected to ReX, and transmits signals from the devices to the Hub. The Hub polls the extender every 12~300 seconds (by default: 36 seconds) while the alarms are communicated within 0.3 seconds.
AJAX ReX manual
ReX does not increase the number of devices connected to the Hub

Only one ReX radio signal range extender can be connected to the Hub.

Hub + ReX    Up to 99

Hub 2 + ReX    Up to 99

Hub Plus + ReX    Up to 149

Connection of the ReX to the Hub

Prior to initiating the connection:

1. Install the AJAX application onto your smartphone following the instructions of the hub Guide (Hub, Hub Plus, Hub 2).

2. Create user account, add the hub to the application, and create at least one room.

3. Open the AJAX application.

4. Turn on the hub and check the Internet connection.

5. Ensure that the hub is disarmed and is not updating by checking its status in the mobile application.

6. Connect ReX to external power.

Connecting the ReX to the Hub:

1. Click Add Device in the AJAX application.

2. Name the extender, scan or manually enter the QR-code
(located on the lid and package), and select the room where the device is located.
AJAX ReX manual
3. Click Add — the countdown begins.

4. Turn on ReX by pressing the power button for 3 seconds
Shortly after connecting to the hub the logo will change its color from red to white within 30 seconds after ReX is switched on.
AJAX ReX manual

In order for detection and interfacing to occur, ReX must be located within radio communication range of the hub (on the same guarded facility).

The request for connection to the hub is transmitted for a short time at the time of switching on the device. If the connection to the hub fails, turn off the extender by pressing the power button for 3 seconds and retry the connection procedure after 5 seconds.

The extender connected to the hub will appear in the list of hub devices in the application. The updating of device statuses in the list depends on the polling time set in the hub settings; the default value is 36 seconds.

Choosing devices for operation by the ReX

In order to assign a device to the extender:
1. Go to the ReX settings (Devices → ReX → Settings ).

2. Press Pair with device.

3. Choose the devices that should operate via the extender.

4. Go back to the ReX settings menu.

Once the connection is established, the selected devices will be marked with the RE icon in the mobile application.
AJAX ReX manual

In order to assign a device to the hub:

1. Go to the ReX settings (Devices → ReX → Settings ).

2. Press Pair with device.

3. Uncheck the devices that need to be connected to the hub directly.

4. Go back to the ReX settings menu.

Values of the ReX

AJAX ReX manual

Signal strength: Signal strength between the hub and ReX

Connection: Connection status between the hub and the extender

Battery charge: The battery level of the extender (displayed in 1% increments)

Body: Tamper mode that reacts to an attempt to detach or violate the integrity of the extender body

External power: Availability of external power

Firmware: ReX firmware version

Device ID: Identifier of the device

ReX settings

AJAX ReX manual
First field: Device name, can be edited

Room: Selection of a virtual room that the device is assigned to

Pair with device: Assignment of devices for the extender

Signal strength test: Signal strength test between the extender and the hub

User Manual: Opening ReX User Manual

Unpair device: Disconnecting the extender from the hub and deleting its settings


The ReX LED indicator may light red or white depending on the state of the device.
AJAX ReX manual

Device is connected to the hub: Constantly lights white

Device lost connection with the hub: Constantly lights red

No external power: Blinks every 30 seconds

Functionality testing

The AJAX security system allows conducting tests for checking the functionality of connected devices.

The tests do not start straight away but within a period of 36 seconds when using the standard settings. The test time start depends on the settings of the detector scanning period (the paragraph on “Jeweller” in hub settings).

Signal Strength Test

Device installation

Selection of the installation site

The location of ReX determines its distance from the hub, the devices connected to the extender, and the presence of obstacles preventing the passage of the radio signal: walls, interfloor bridgings, and large objects located in the facility.

If the signal strength reaches just one bar on the indicator, the stable operation of the security system can not be guaranteed. Take whatever action is necessary to improve the quality of the signal! At the very least, move ReX or hub — relocation even by 20 cm can significantly improve the reception quality.

Installation procedure

Before installing ReX, be sure to choose the best location that meets the requirements of this guide! It is desirable for the extender to be hidden from direct view.

During mounting and operating, follow the general electrical safety rules when using electrical appliances as well as the requirements of electrical safety laws and regulations.

Device mounting
1. Fix the SmartBracket attachment panel with the bundled screws. If you choose to use other fasteners, make sure that they do not damage or deform the panel.
It is not recommended to use double-sided adhesive tape for installation..
This can result in ReX falling that can lead to malfunctioning of the device.

2. Slide ReX onto the attachment panel. After installation, check the tamper status in the AJAX application and then the panel tightness.

3. In order to ensure higher reliability, fix ReX to the SmartBracket panel with the bundled screws.
AJAX ReX manual
You will receive a notification if an attempt to detach the extender from the surface or remove it from the attachment panel is detected.
It is strictly forbidden to disassemble the device connected to the power supply!
Do not use the device with a damaged power cable. Do not disassemble or modify ReX or its individual parts — this may interfere with the normal operation of the device or lead to its failure.

Don’t place the ReX:

  1. Outside the room (outdoors).
  2. Near metal objects and mirrors that cause attenuation or screening of radio signals.
  3. In places with high levels of radio interference.
  4. In rooms characterized by humidity and temperature levels beyond the permissible limits.
  5. Closer than 1 m from the hub.

Maintenance of the ReX

Check the functionality of the AJAX security system regularly.

Clean the body from dust, cobwebs, and other contaminants as they emerge. Use soft dry napkin suitable for equipment maintenance.

Do not use substances that contain alcohol, acetone, gasoline or other active solvents to clean the extender.

Complete Set of the Hub

1. ReX

2. SmartBracket mounting panel

3. Power cable

4. Installation kit

5. Quick Start Guide

Tech Specs

  • Maximum number of connected devices: Hub — 99, Hub 2 — 99, Hub Plus — 149
  • Max number of connected ReX per hub: 1
  • Power supply: 110~240 V AC, 50 / 60 Hz
  • Backup battery: Li-Ion 2 A⋅h (up to 35 hours of autonomous operation)
  • Tamper protection: Available
  • Frequency band: 868.0~868.6 MHz or 868.7~869.2 MHz depending on the region of sale
  • Compatibility: Operates only with Hub, Hub Plus and Hub 2 featuring OS Malevich 2.7.1 and later
  • Maximum radio signal power: Up to 25 mW
  • Radio signal modulation: GFSK
  • Radio signal range: Up to 1,800 m (any obstacles absence)
  • Operating temperature range: From -10°С to +40°С
  • Operating humidity: Up to 75%
  • Overall dimensions: 163 х 163 х 36 mm
  • Weight: 330 g
